Invisible Technology, Decisive Details

Crafting outstanding performance in every millimetre with artisan precision.

Structural Innovation

Breakthrough designs solving traditional window and door pain points.

Composite Thermal Break System

Composite Thermal Break System

Using PA66 nylon + 304 stainless steel composite thermal break design, achieving 40% better thermal isolation efficiency compared to traditional aluminium thermal break windows, effectively reducing energy consumption and improving indoor comfort.

40%
Thermal Efficiency Improvement
0.3W/(m·K)
Thermal Conductivity
-40℃~120℃
Temperature Range

Core Advantages

  • Multi-cavity structure design blocks heat transfer paths
  • Stainless steel reinforcement enhances structural strength
  • Special formula nylon material with excellent anti-aging performance
  • Passed 20,000 thermal cycle tests
3D Wind-Resistant Sealing

3D Wind-Resistant Sealing

Innovative dual drainage channels + 45° water guide slope design, combined with air pressure balance valve, completely resolving water accumulation and leakage — drainage efficiency improved by 300%.

600Pa
Water Tightness Rating
300%
Drainage Efficiency Improvement
150mm/h
Heavy Rain Capacity

Core Advantages

  • Open drainage channel: rapid discharge of large water volumes
  • Concealed drainage channel: hidden design with 45° slope guiding water flow
  • Air pressure balance valve: automatically adjusts internal/external pressure, preventing strong wind backflow
  • Self-cleaning design: prevents dust from blocking drainage channels

Climate Adaptability Design

Specially optimised for New Zealand's variable climate conditions.

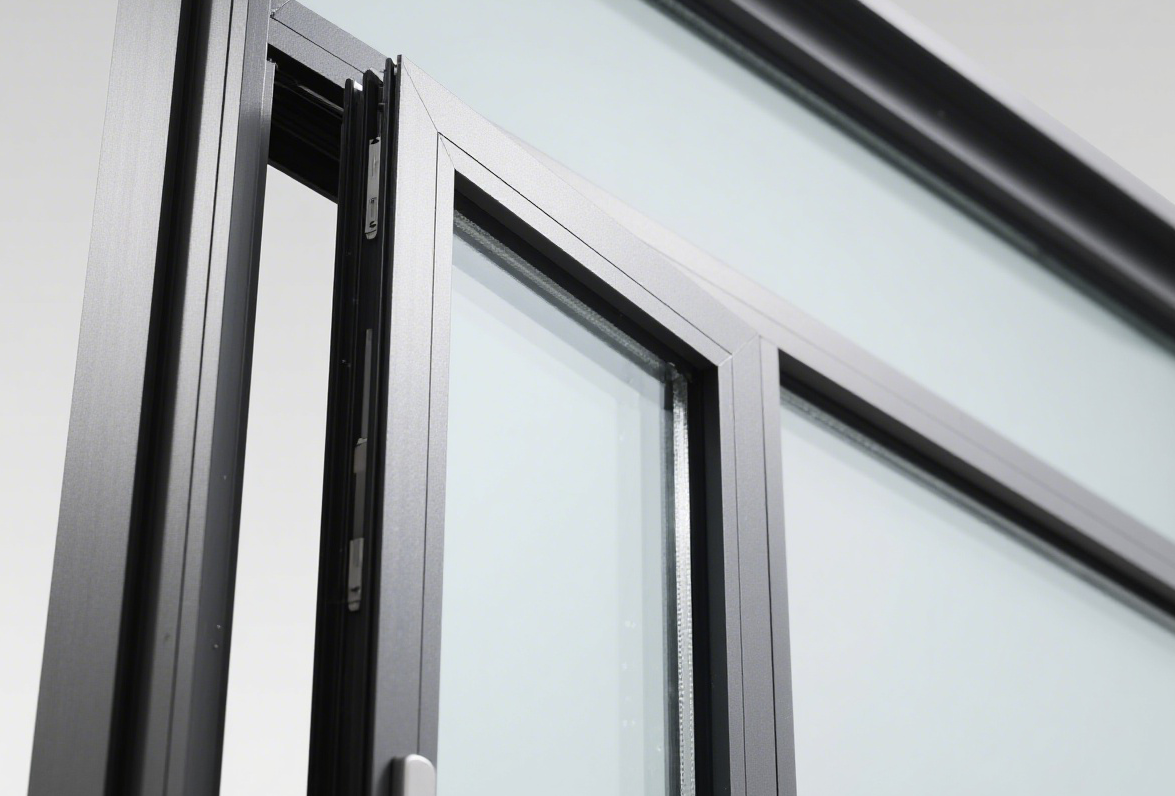

Typhoon Defence Mode

Typhoon Defence Mode

  • Reinforced mullion with built-in 1.5mm galvanised steel liner
  • Multi-point locking system (≥6 lock points)
  • Wind pressure resistance Class 4 (≥3000Pa)
  • Passed AS 2047 wind pressure testing
Extreme Cold Insulation Mode

Extreme Cold Insulation Mode

  • Triple glazing (4+12A+4+12A+4)
  • Warm edge spacers eliminate edge thermal bridging
  • U-value as low as 0.8W/(m²·K)
  • Meets Passive House standards
High UV Protection

High UV Protection

  • Low-E coated glass blocks 99% UV rays
  • Fluorocarbon spray surface treatment
  • Weathering test: 3,000 hours QUV
  • Colour retention: 15 years ΔE≤3
Marine Climate Corrosion Resistance

Marine Climate Corrosion Resistance

  • Anodising + fluorocarbon dual protection
  • Salt spray test: 3,000 hours corrosion-free
  • Special drainage design prevents salt accumulation
  • Stainless steel hardware, corrosion resistance grade A4

Precision Craftsmanship Details

Artisan dedication to every joint and seal.

Injection Corner Assembly

Injection Corner Assembly

Using dual-component corner adhesive, ensuring corner strength, waterproof sealing, passed 10,000 open-close cycle tests.

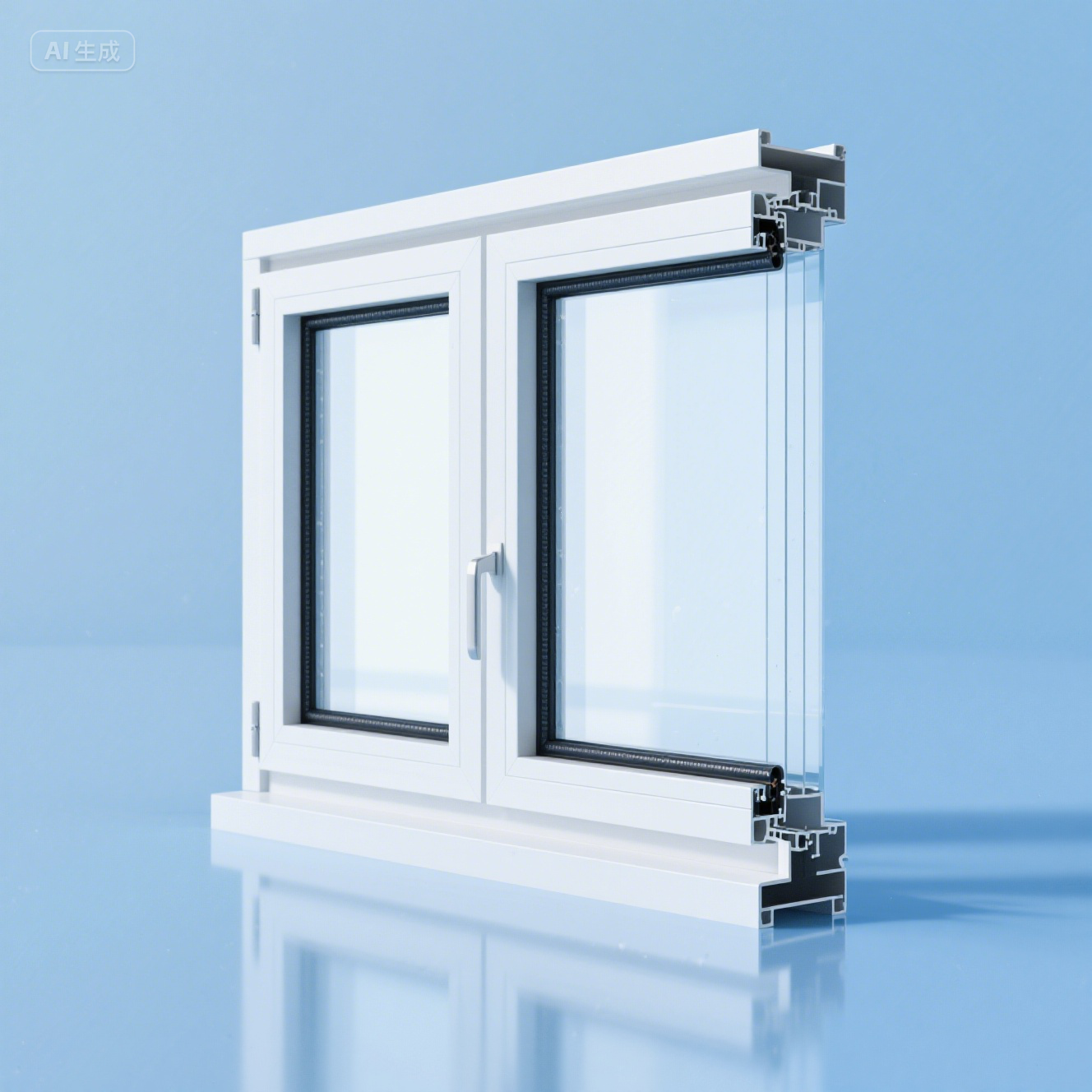

Triple Seal System

Triple Seal System

EPDM seal strips forming a complete sealing line, ensuring air tightness, water tightness, and acoustic performance.

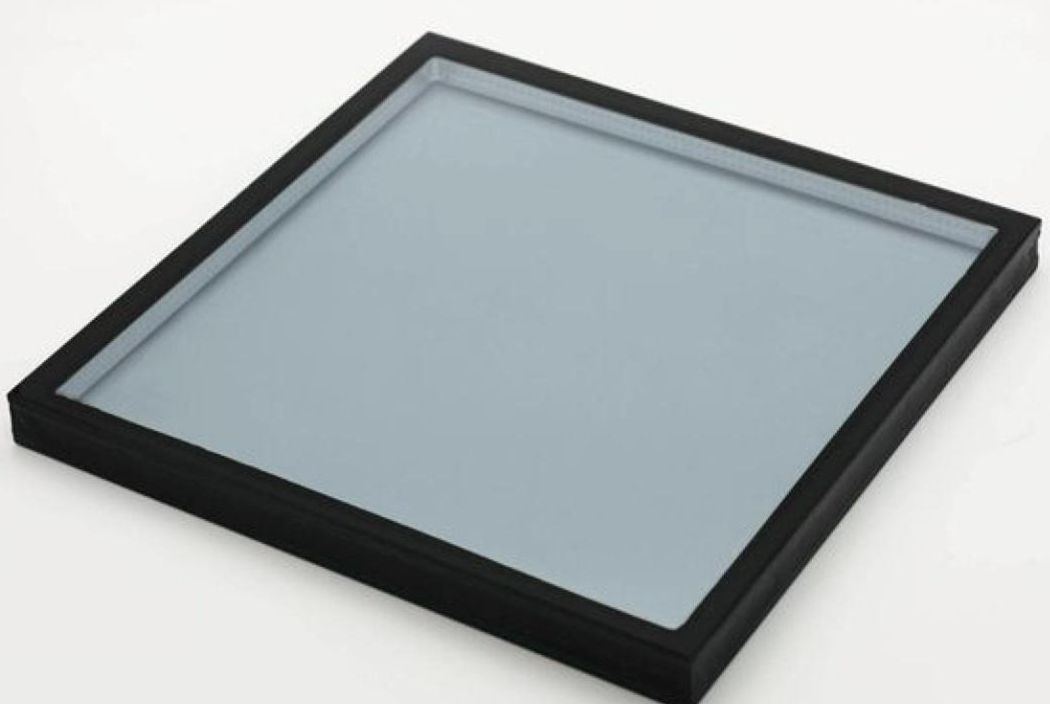

Flexible Glass Installation

Flexible Glass Installation

Elastic pad design prevents glass stress cracking, extending service life.

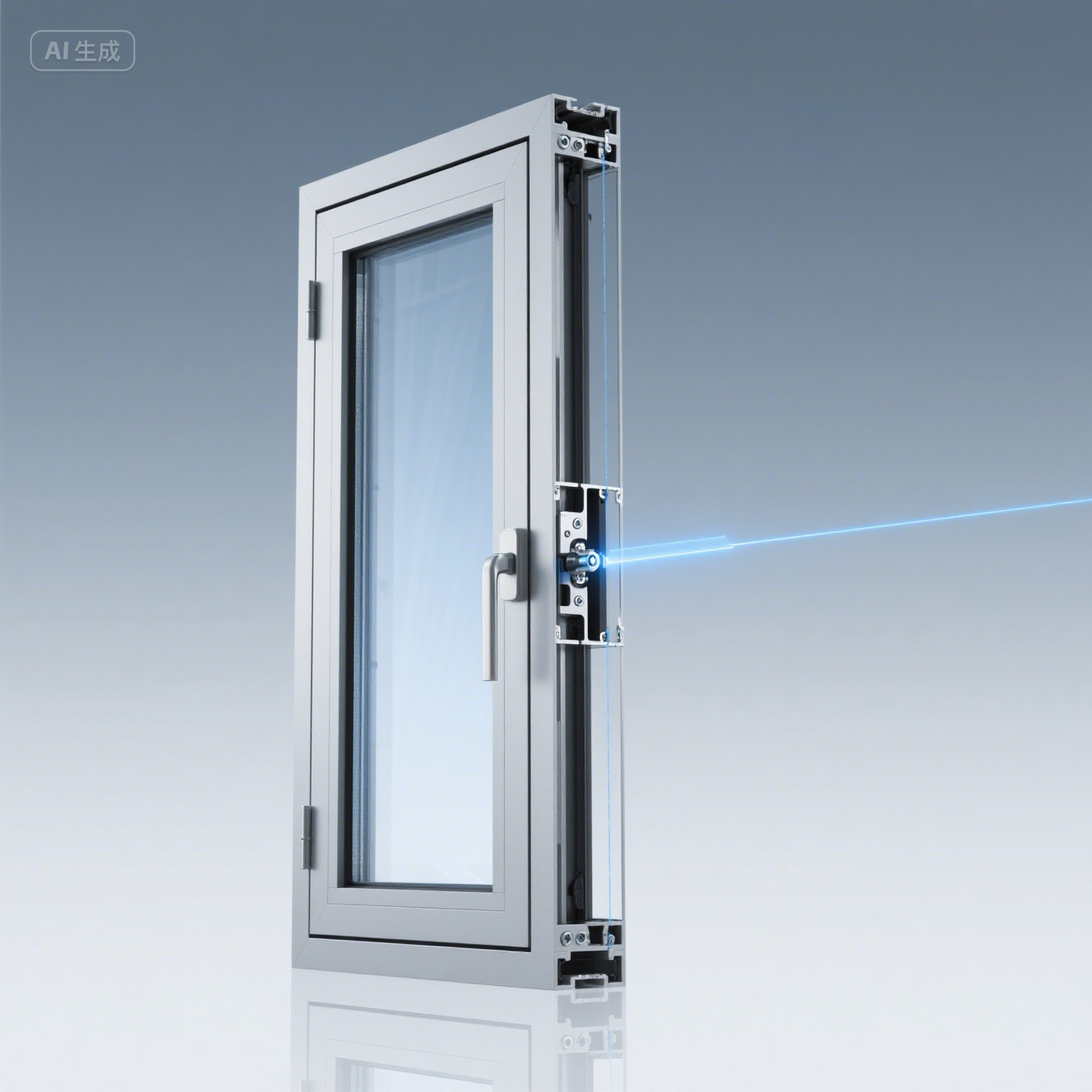

Precision Hardware Installation

Precision Hardware Installation

Laser-positioned installation ensures smooth operation, tested for 100,000 open-close cycles without failure.

1

Raw Material Inspection

Full inspection of aluminium, glass, and hardware

2

Precision Machining

CNC 5-axis machining centre

3

Assembly & Testing

21-step quality inspection process

4

Packaging & Transport

Professional protective packaging
